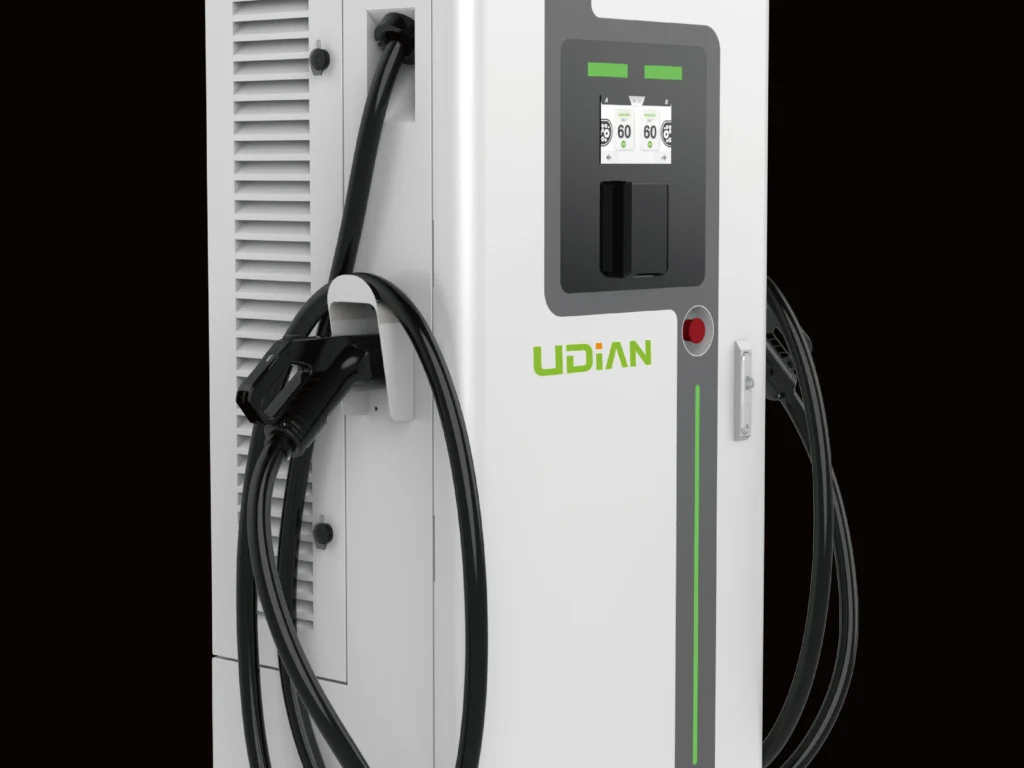

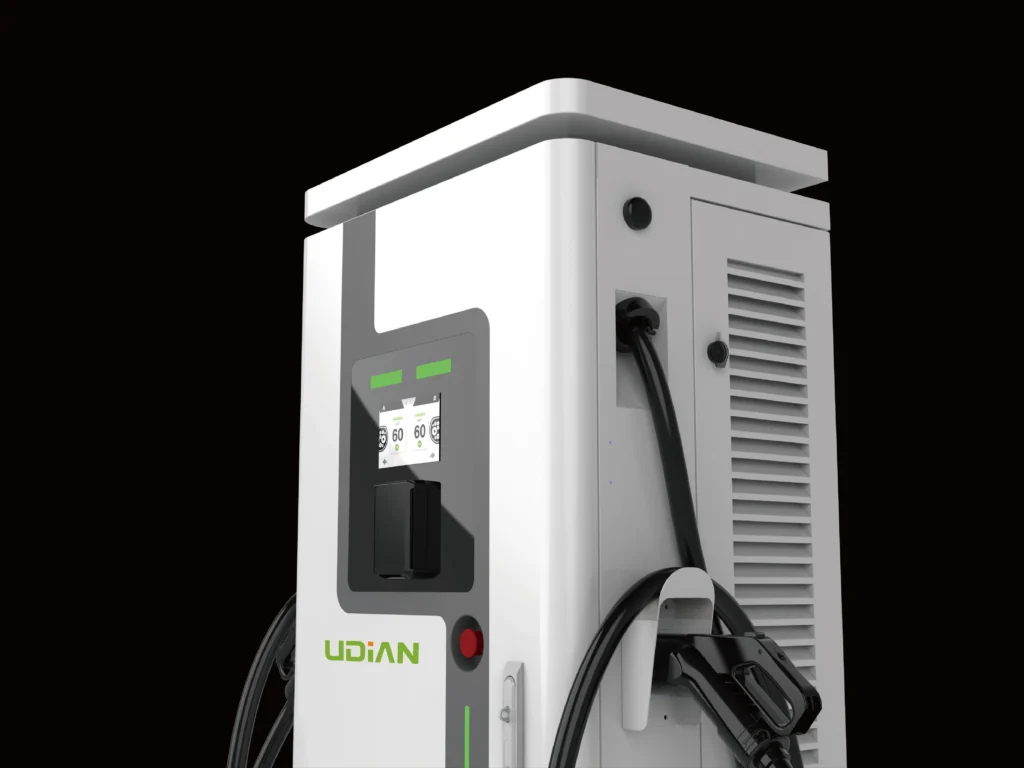

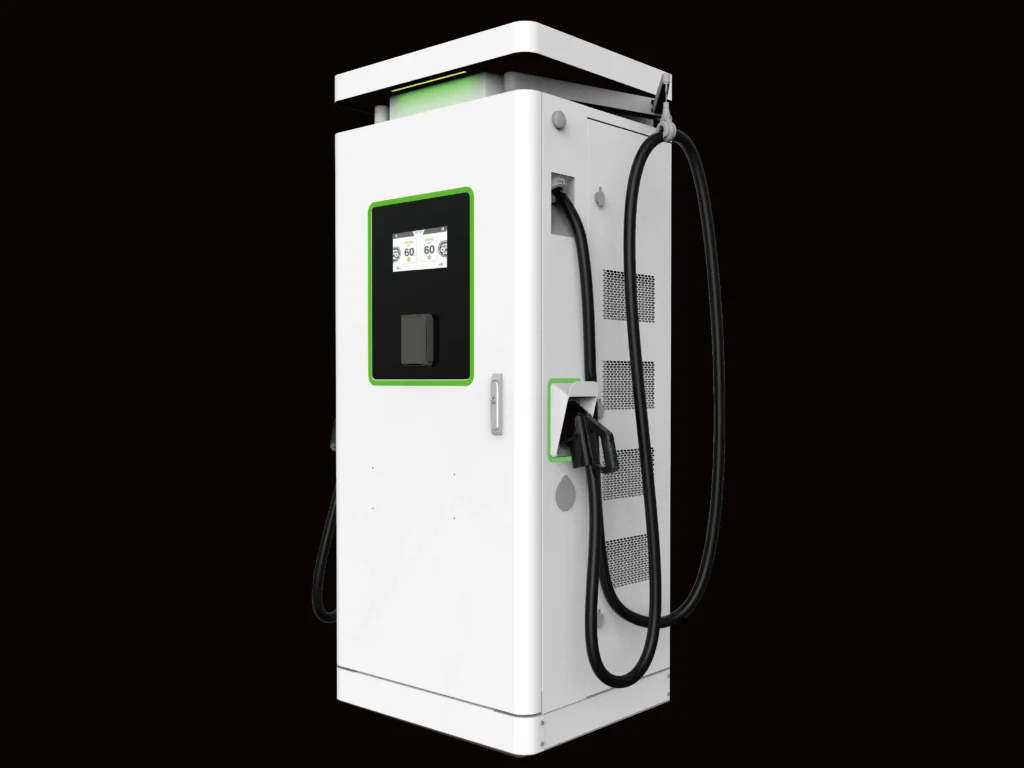

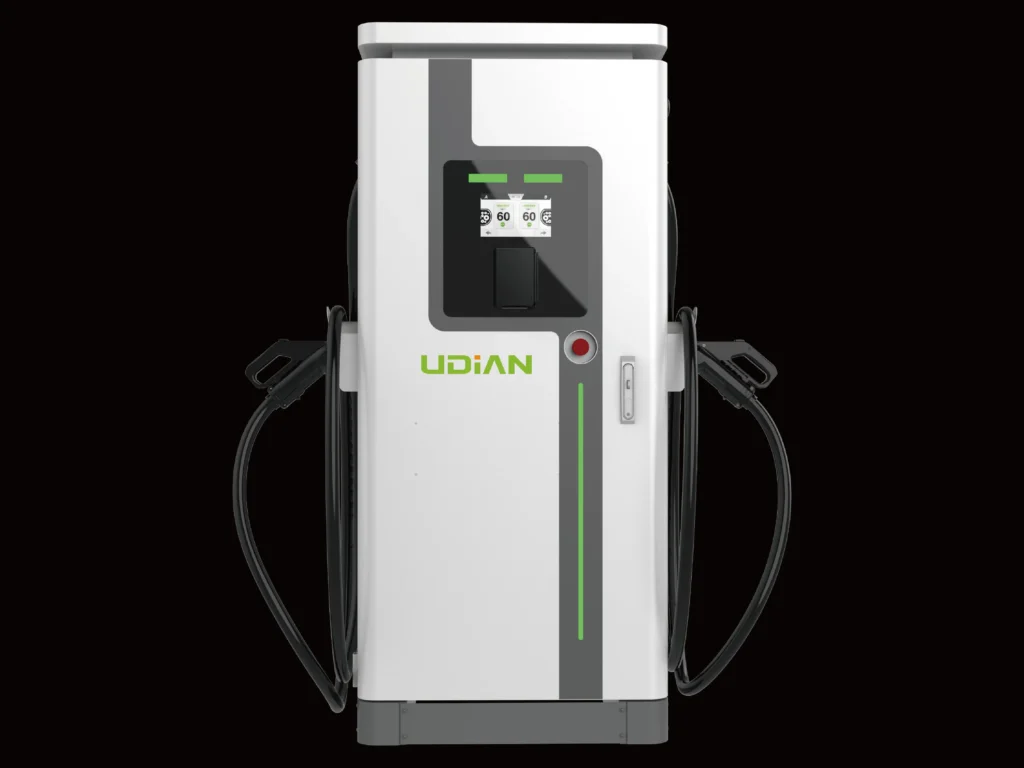

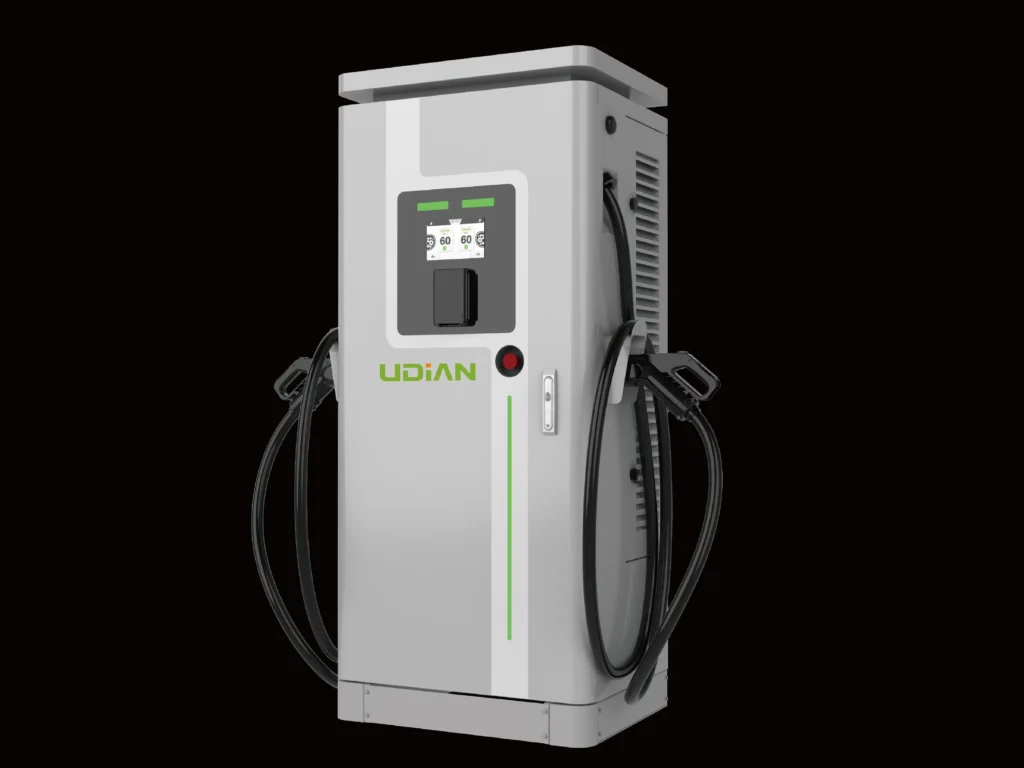

UDGALAXY 200

Powerful 320kw DC charger

Remote O&M

Scheduler

Load Balancing

App

RFID

Plug to Play

OCPP

Wi-Fi

Ethernet

4G

Bluetooth

97.5 % efficiency

Groundbreaking SiC semiconductors deliver a

whole new level of efficiency.

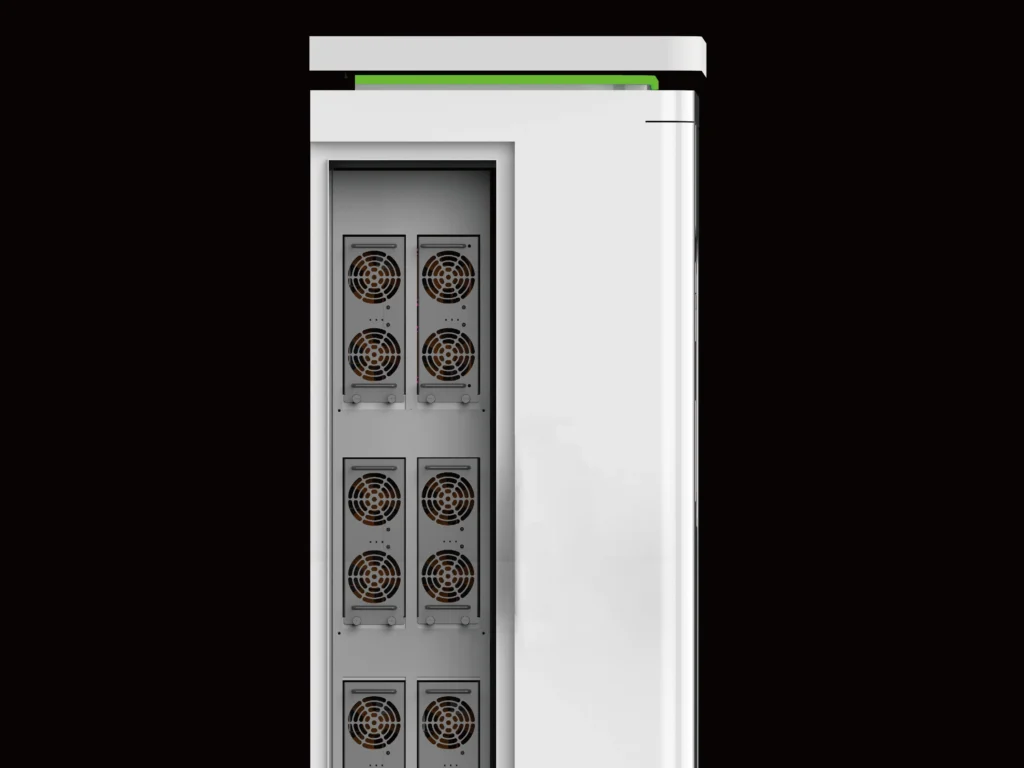

Scalable

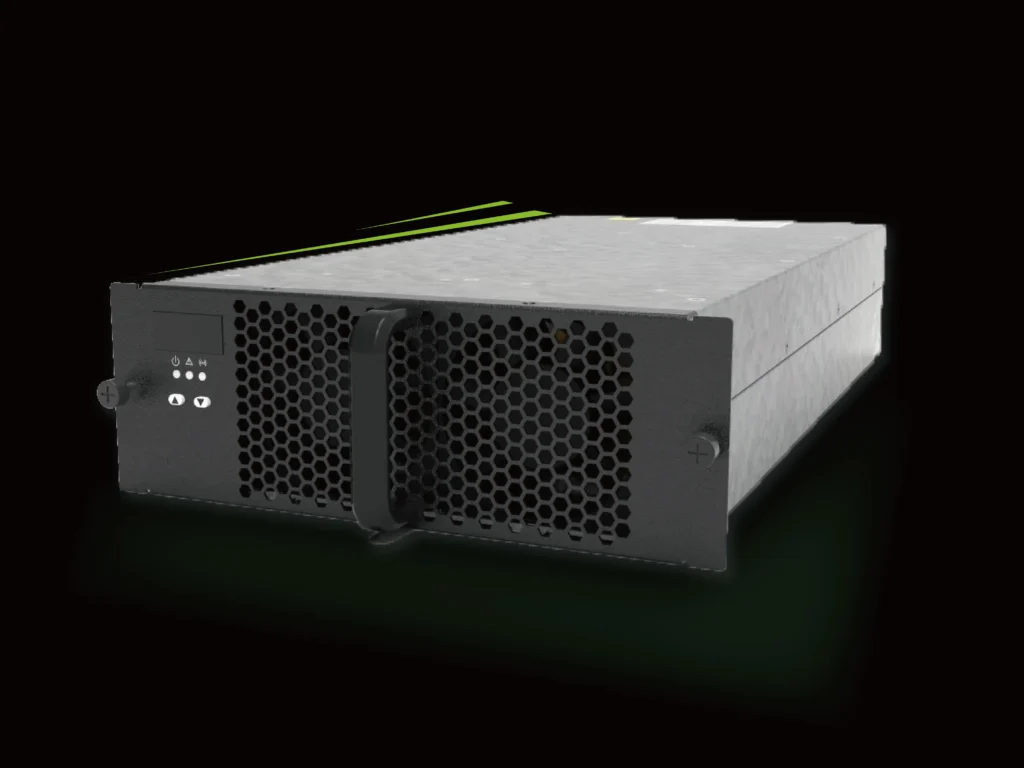

The Power-Stack concept allows for seamless scaling from 60kW to 320kW, offering easy upgrades and ensuring that your investment remains future-proof for years to come.

2x160kW simultaneous charging

EV charging power continues to increase each year, making it crucial to ensure an adequate power supply for each charging point.

400kW power output

A 320 kW charging capacity is ideal to significantly reduce charging times for commercial vehicles and high-performance EVs

Dynamic load management with 40kw granularity

Significantly boosts flexibility and enables more efficient distribution of energy among vehicles.

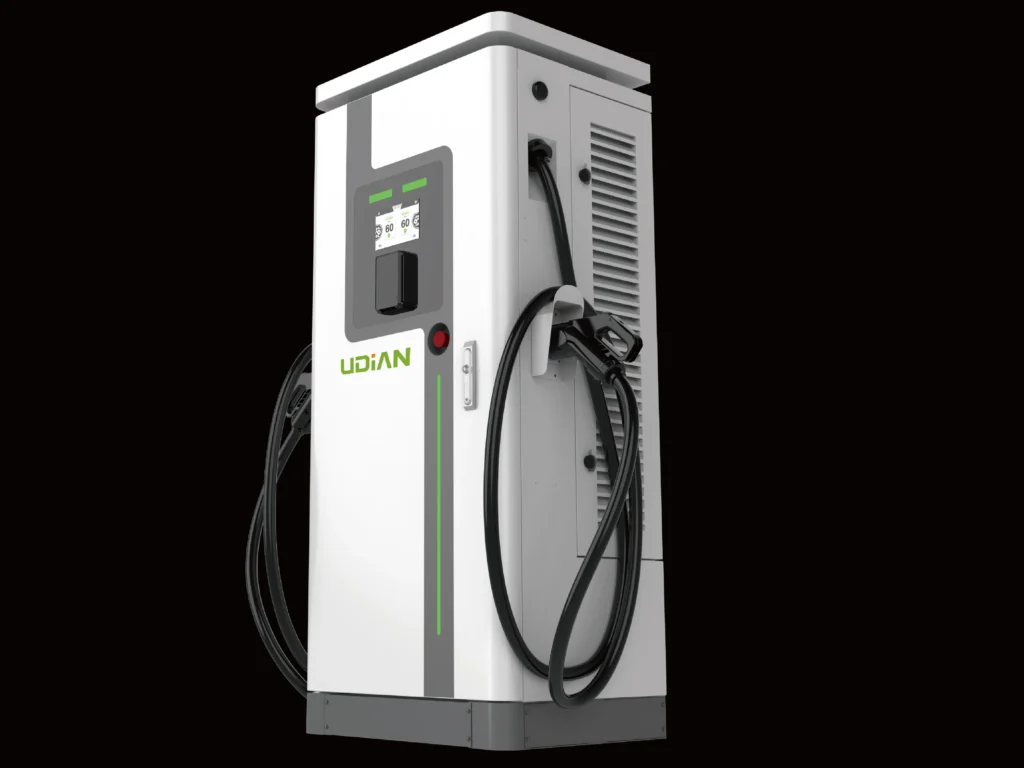

Cable management system

The cable management system provides ease of use and ensures a longer cable lifespan.

UDGALAXY 200 Customization Options

Customizable Branding

The option to personalize the UDcharger with a corporate branding has always been a distinctive feature for customers and partners.Its timeless housing provides advertising space that can be branded to boost customer recognition and make the charger uniquely personal.

UDB&UDGALAXY Housing

Customize the housing with any color you canimagine.

UDB&UDGALAXY Reflective stripe

Prominent reflective stripes can be customized to the color of choice, lending each UDcharger its own distinguishing look.

UDB&UDGALAXY Wrapping

Wrap just part of the station or all around: The customer decides! The result is a uniquely personalized charging station and the foiling can be swapped out for a new look at any time.

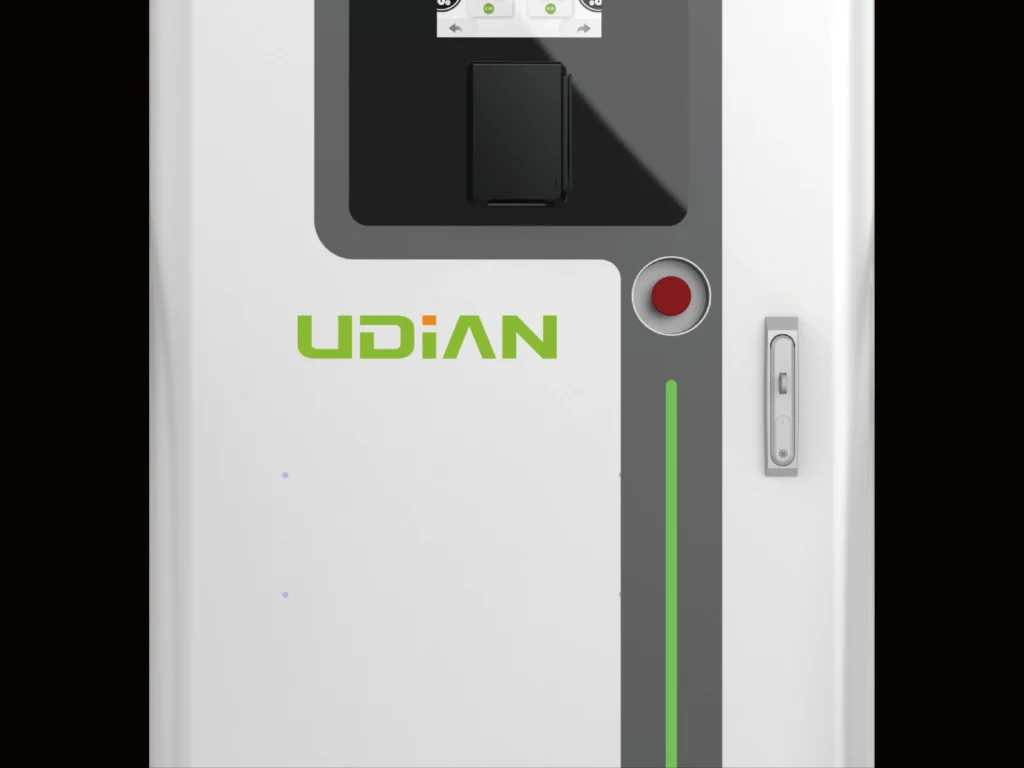

UDB&UDGALAXY Design Front

The compact, high-class design of the HYC50 can be enhanced with a back-printed graphic of choice on the design front of the charger.

Technical specifications

System specifications

Specifications are subject to change without notice.

01
Model/PN
UDGALAXY – 6O/80/120/160/180/240/320 KW
02
Input Rating
400V+15% AC
03
Power Factor
>/= 20.99
04
Power Output
60/80/120/160/180/240/320 KW
05
Output Voltage
150-1000V DC
06
Output Current (Per connector)
200/200/250/250/250/250/250 A
07
Electrical Protection
Over current,shortcircuit, Over voltage, Under voltage,Groundfault,Lightningsurge, Over temperature
08
Display
7*TFT LcD touch screen
09
Supporting Language
English,Russian,simplified/traditional,chine se,Kazakh,or otherlanguages required
10
User Authentication
RFlD card reader, user name & password, mobile No. & pin code
11
Paynent Terminal
PAX (o ptional)
12
Push Button
Emergency stop
13
Charge Option
Charge byduration, by energy, by amount
14
Operating Temperature
(-30° C to +55° C)in operation,(-40° C to+75° C)in storage
15
Working Humidity
95% relative humidity,non-condensing
16
Altitude
Up to 6000 feet(2000 m)
17
IP Performance
IP54
18
Cooling
Forced air
19
Charging Cable Length
16.4 ft (5 m), straight cable
20
Dimension(HxWxD, mm)
60-160kw:1700*740*550mm/ 180-320kw:1800*740*550mm
21
Package Dimension
60-160kw:1900*1100*800mm/ 180-320kw:2000*1100*800mm
22
Net Weight
188/188/218/248/318/348/368 KG
23
GrossWeight
238/238/268/298/368/398/420 KG
24
Network interface
Ethernet, 4G/WlFl
25
Protocol
0CPP1.6,0CPP2.0.1.15015118
26
Web Portal & Mobile App
Yes, IOS/ Android
27
Certifications
CE, EU standard, DlN70121/IEC61851

Service

The UDcharger after-sales team provides 24/7 support, including both remote and on-site assistance. UD handles all technical questions, repairs, and maintenance, collaborating with certified partners for on-site troubleshooting, Service options are flexible and include CPMS integration support
